Hydraulic Motor IPM Series can replace the motors of same displacement, which produced by Intermot, Calzoni, Staffa, SAI, and others. They are available to do modification of non-standard installing dimension. Further discussion about this type motors, please contact our engineers.

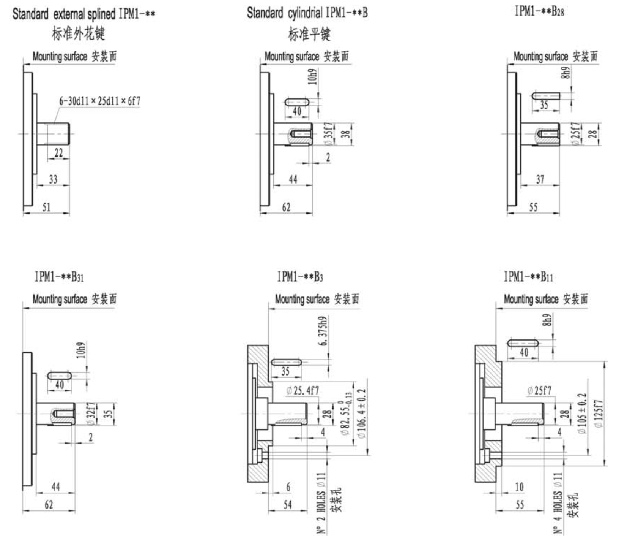

The Motor's Configuration:
IPM Hydraulic Motors' Parameters:
|
Model |
Theoretical Displacement (ml/r) |
Rated Pressure (Mpa) |
Peak Pressure(MPa) |
Rated Torque(N.m) |
Specific Torque(N.m/MPa) |
Speed Range(r/min) |
Max. Power(KW) |
Weight(kg) |
|
IPM1-50 |
56 |
20 |
28 |
178 |
8.9 |
15-1000 |
15 |
23 |
|
IPM1-63 |
64 |
20 |
28 |
203 |
10.15 |
15-900 |
||
|
IPM1-80 |
76.9 |
20 |
28 |
244 |
12.20 |
15-800 |
||
|
IPM1-100 |
100 |
20 |
25 |
318 |
15.90 |
15-750 |
||
|
IPM1-125 |
124 |
16 |
24 |
305 |
19.06 |
15-650 |
||
|
IPM1-150 |
157 |
16 |
24 |
398 |
24.88 |
15-500 |
||
|
IPM1-160 |
179 |
16 |
24 |
456 |
28.50 |
15-450 |
||
|
IPM1-200 |
194 |
16 |
24 |
492 |
30.75 |
15-400 |
||
|
IPM2-125 |
124 |
20 |
28 |
394 |
19.70 |
8 - 700 |
22 |
31 |
|
IPM2-150 |
151 |
20 |
28 |
480 |
24.00 |
8 - 650 |
||
|
IPM2-175 |
180 |
16 |
25 |
457 |
28.56 |
8 - 600 |
||
|
IPM2-200 |
206 |
16 |
25 |
523 |
32.69 |
8 - 550 |
||
|
IPM2-250 |
235 |
16 |
25 |
598 |
37.38 |
8 - 500 |
||
|
IPM2-280 |
276 |
16 |
24 |
702 |
43.88 |
8 - 450 |
||
|
IPM2-300 |
318 |
16 |
24 |
809 |
50.56 |
8 - 400 |
||
|
IPM3-175 |
181 |
20 |
30 |
578 |
28.9 |
7 - 800 |
36 |
39 |
|
IPM3-200 |
201 |
20 |
30 |
640 |
32.00 |
7 - 700 |
||
|
IPM3-250 |
254 |
20 |
30 |
810 |
40.50 |
7 - 600 |
||
|
IPM3-300 |
289 |
20 |
30 |
920 |
46.00 |
7 - 500 |
||
|
IPM3-350 |
339 |
16 |
25 |
864 |
54.00 |
6 - 420 |
||
|
IPM3-400 |
403 |
16 |
25 |
1027 |
64.19 |
6 - 350 |
||
|
IPM3-420 |
427 |
16 |
25 |
1088 |
68.00 |
6 - 330 |
||
|
IPM3-450 |
451 |
16 |
25 |
1148 |
71.75 |
6 - 300 |
||
|
IPM4-400 |
397 |
20 |
30 |
1265 |
63.25 |
5 - 500 |
52 |
66 |
|
IPM4-450 |
452 |
20 |
30 |
1440 |
72.00 |
5 - 480 |
||
|
IPM4-500 |
490 |
20 |
30 |
1562 |
78.10 |
5 - 450 |
||
|
IPM4-600 |
593 |
20 |
30 |
1890 |
94.50 |
5 - 420 |
||
|
IPM4-650 |
660 |
16 |
25 |
1680 |
105.00 |
5 - 400 |
||
|
IPM4-700 |
706 |
16 |
25 |
1800 |
112.50 |
5 - 380 |
||
|
IPM4-750 |
754 |
16 |
25 |
1921 |
120.06 |
5 - 350 |
||
|
IPM4-800 |
815 |
16 |
25 |
2064 |
129.00 |
5 - 300 |
||
|
IPM5-700 |
713 |
20 |
30 |
2268 |
113.40 |
4 - 400 |
68 |
84 |
|
IPM5-750 |
763 |
20 |
30 |
2428 |
121.40 |
4 - 380 |
||
|
IPM5-800 |
815 |
20 |
30 |
2594 |
129.70 |
4 - 350 |
||
|
IPM5-850 |
868 |
16 |
25 |
2196 |
137.25 |
4 - 340 |
||
|
IPM5-900 |
895 |
16 |
25 |
2278 |
142.38 |
4 - 320 |
||
|
IPM5-1000 |
1009 |
16 |
25 |
2774 |
173.38 |
4 - 300 |
||
|
IPM6-700 |
714 |
20 |
30 |
2260 |
113.00 |
4 - 400 |
78 |
98 |
|
IPM6-800 |
792 |
20 |
30 |
2520 |
126.00 |
4 - 400 |
||
|
IPM6-900 |
904 |
20 |
30 |
2860 |
143.00 |
4 - 380 |
||
|
IPM6-1000 |
992 |
20 |
30 |
3140 |
157.00 |
4 - 320 |
||
|
IPM6-1100 |
1116 |
20 |
30 |
3540 |
177.00 |
3 - 300 |
||
|
IPM6-1200 |
1247 |
16 |
25 |
3168 |
198.00 |
3 - 280 |
||
|
IPM6-1300 |
1315 |
16 |
25 |
3344 |
209.00 |
3 - 250 |
||
|
IPM6-1400 |
1406 |
16 |
25 |
3568 |
223.00 |
3 - 230 |
||
|
IPM6-1500 |
1481 |
16 |
25 |
3760 |
235.00 |
3 - 210 |
||
|
IPM6-1600 |
1597 |
16 |
25 |
4064 |
254.00 |
3 - 200 |
||
|
Model |
Theoretical Displacement (ml/r) |
Rated Pressure (MPa) |
Peak Pressure(MPa) |
Rated Torque(N.m) |
Specific Torque(N.m/MPa) |
Speed Range(r/min) |
Max. Power(KW) |
Weight(kg) |
|
IPM7-1400 |
1413 |
20 |
30 |
4500 |
225.00 |
2 - 300 |
95 |
158 |
|
IPM7-1600 |
1648 |
20 |
30 |
5248 |
262.40 |
2 - 250 |
||
|
IPM7-1800 |
1815 |
18 |
28 |
5184 |
288.00 |
2 - 220 |
||
|
IPM7-2000 |
2035 |
16 |
25 |
5168 |
323.00 |
2 -200 |
||
|
IPM7-2200 |
2268 |
16 |
25 |
5776 |
361.00 |
2 - 180 |
||
|
IPM7-2400 |
2480 |
16 |
25 |
6304 |
394.00 |
2 - 160 |
||
|
IPM8-2450 |
2449 |
20 |
30 |
7780 |
389.00 |
2 - 200 |
128 |
307 |
|
IPM8-2550 |
2559 |
20 |
30 |
8140 |
407.00 |
2 - 200 |
||
|
IPM8-2800 |
2845 |
18 |
28 |
8136 |
452.00 |
1 - 175 |
||
|
IPM8-3000 |
3023 |
16 |
25 |
7696 |
481.00 |
1 - 150 |
||
|
IPM8-3300 |
3333 |
16 |
25 |
8480 |
530.00 |
1 - 150 |
||
|
IPM8-3500 |
3526 |
16 |
25 |
8976 |
561.00 |
1 - 130 |
||
|
IPM8-4000 |
3998 |
16 |
25 |
10176 |
636.00 |
1 - 130 |
||
|
IPM9-3550 |
3560 |
20 |
28 |
11320 |
566.00 |
1 - 160 |
145 |
392 |
|
IPM9-3700 |
3720 |
20 |
28 |
11840 |
592.00 |
1 - 160 |
||
|
IPM9-4000 |
4136 |
20 |
28 |
13160 |
658.00 |
1 - 150 |
||
|
IPM9-4400 |
4396 |
16 |
25 |
11184 |
699.00 |
1 - 150 |
||
|
IPM9-4800 |
4846 |
16 |
25 |
12336 |
771.00 |
1 - 125 |
||
|
IPM9-5000 |
5127 |
16 |
25 |
13040 |
815.00 |
1 - 120 |
||
|
IPM9-5500 |
5514 |
16 |
25 |
14032 |
877.00 |
1 - 120 |
||
|
IPM9-5800 |
5814 |
16 |
25 |
14800 |
925.00 |
1 - 110 |
||
|
IPM9-6300 |
6322 |
16 |
25 |
16096 |
1006.00 |
1 - 110 |
||
|
IPM10-6000 |
6056 |
20 |
28 |
19276 |
963.80 |
1 - 110 |
160 |
720 |
|
IPM10-6500 |
6437 |
20 |
28 |
20489 |
1024.45 |
1 - 105 |
||
|
IPM10-7000 |
7096 |
20 |
28 |
22587 |
1129.35 |
1 - 100 |
||
|
IPM10-7500 |
7508 |
16 |
25 |
19118 |
1194.88 |
1 - 95 |
||
|
IPM10-8000 |
8074 |
16 |
25 |
20560 |
1285.00 |
1 - 90 |
||
|
IPM10-8500 |
8512 |
16 |
25 |
21696 |
1356.00 |
1 - 90 |
||
|
IPM11-9000 |
8953 |
20 |
28 |
28470 |
1423.50 |
0.5 - 100 |
220 |
900 |
|
IPM11-9500 |
9559 |
20 |
28 |
30398 |
1519.90 |
0.5 - 95 |
||
|
IPM11-10000 |
10028 |
20 |
28 |
31889 |
1594.45 |
0.5 - 90 |
||
|
IPM11-11000 |
10507 |
16 |
25 |
26730 |
1670.63 |
0.5 - 85 |
||
|
IPM11-11500 |
11331 |
16 |
25 |
28826 |
1801.63 |
0.5 - 85 |
||
|
IPM11-12000 |
12186 |
16 |
25 |
31001 |
1937.56 |
0.5 - 80 |
||
|
IPM12-14000 |
14389 |
20 |
28 |
45757 |
2287.85 |
0.5 - 75 |
250 |
1800 |
|
IPM12-15500 |
15667 |
20 |
28 |
49821 |
2491.05 |
0.5 - 70 |
||
|
IPM12-16500 |
16460 |
20 |
28 |
52342 |
2617.10 |
0.5 - 70 |
||
|
IPM12-17000 |
17000 |
20 |
28 |
54060 |
2703.00 |
0.5 - 70 |
||
|
IPM12-18000 |
18387 |
20 |
28 |
58470 |
2923.50 |
0.5 - 65 |
||
|
IPM12-18500 |
18957 |
16 |
25 |
48226 |
3014.13 |
0.5 - 65 |
||
|
IPM12-19500 |
19536 |
16 |
25 |
49700 |
3106.25 |
0.5 - 65 |
||
|
IPM12-20000 |
19829 |
16 |
25 |
50446 |
3152.88 |
0.5 - 65 |
||
|
IPM12-21500 |
21325 |
16 |
25 |
54250 |
3390.63 |
0.5 -65 |
||
|
IPM12-23000 |
22857 |
16 |
25 |
58194 |
3637.13 |
0.5 - 60 |
