This hoisting winch is one of the trademark products of the reliability proof of our products. For satisfying high-reliability demands of person lift winches, compared to the existing solutions, we have invented an advanced form of braking system, which innovated with two multi-plate disc normally closed brakes at the high-speed stage and the last stage of the gearbox respectively.

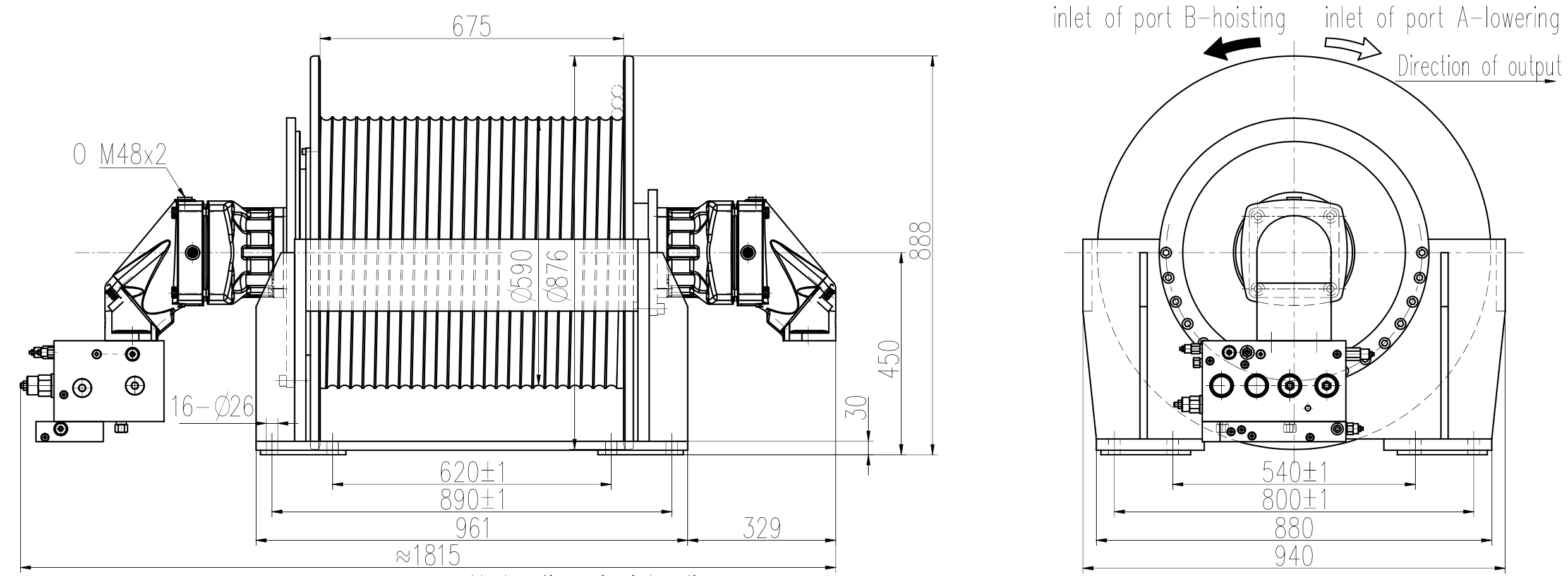

Mechanical Configuration: The winch consists of two hydraulic motors, one planetary gearbox, two multi-disc brakes, valve blocks, drum and frame. Customized modifications are available at any moment.
The Winch's Main Parameters:
| Working Condition |
Carry Cargo |
Man Riding |
| Rated Pull at the 3rd Layer (t) |
13 |
2 |
| Max Line Pull at the 3rd Layer (t) |
14 |
2.5 |
| Rated System Pressure (Bar) |
280 |
60 |
| Max System Pressure (Bar) |
300 |
70 |
| Speed of Cable Wire at the 3rd Layer (m/min) |
120 |
|
| Total Displacement (mL/r) |
13960 |
|
| Pump Supply Oil Flow (L/min) |
790 |
|
| Diameter of Care Wire (mm) |
26 |
|
| Layer |
3 |
|
| Drum Capacity of Care Wire (m) |
150 |
|
| Hydraulic Motor Model |
F12-250x2 |
|
| Gearbox Model (Ratio) |
B27.93 |
|
| Static Brake Holding Force at the 3rd Layer (t) |
19.5 |
|
| Dynamic Brake Holding Force at the 3rd Layer(t) |
13 |
|
| High Speed Stage Brake Torque (N.m) |
2607 |
|
| Low Speed Stage Brake Torque (N.m) |
50143 |
|
| Brake Control Pressure (Bar) |
>30, <60 |
|
