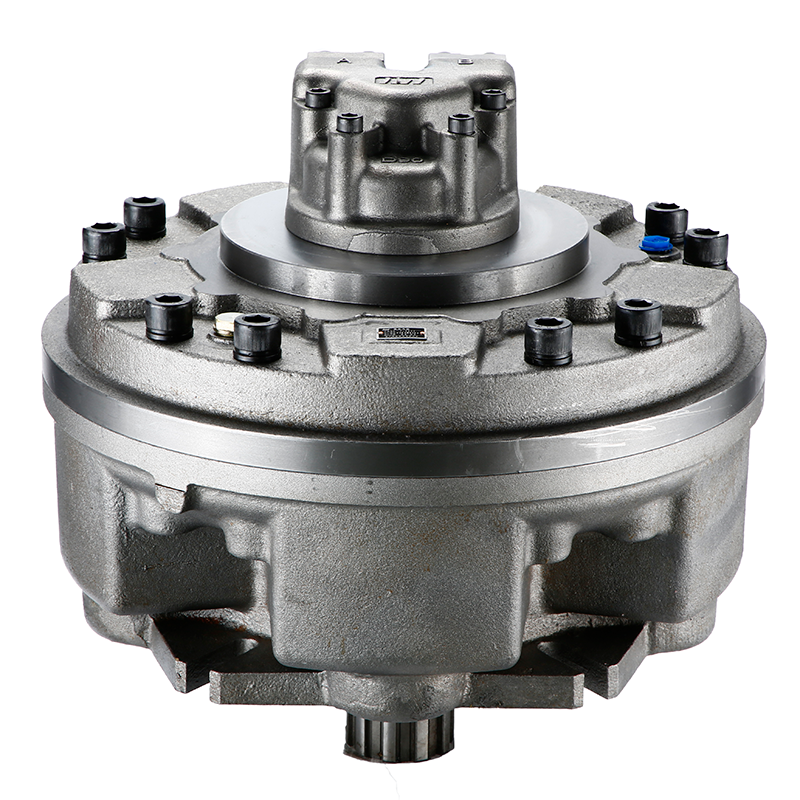

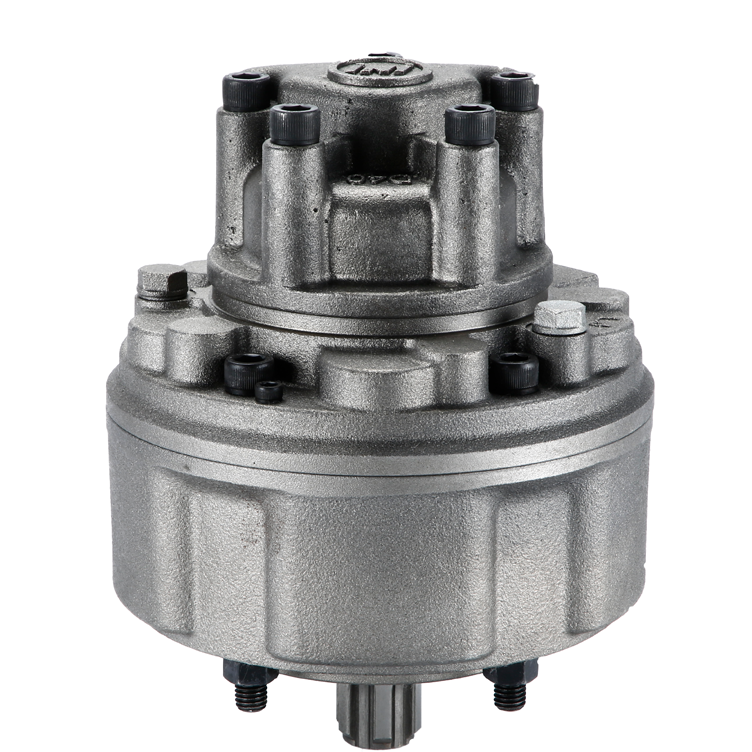

Leak-proof hydraulic motors play a vital role in preventing fluid leakage, ensuring the efficiency and safety of hydraulic systems. Fluid leaks, which account for 70-80% of hydraulic fluid losses, pose significant risks to both the environment and operational reliability. The IMB Series Hydraulic Motor, along with other advanced models like the INC Series Hydraulic Motor, INM Series Hydraulic Motor, and IPM Series Hydraulic Motor, meets the stringent IP69K certification standards. This certification ensures durability and performance under extreme conditions, making these motors indispensable in marine and harsh environments. With over 700 million gallons of petroleum entering the environment annually, leak-proof solutions are critical for reducing environmental harm and meeting increasing regulatory demands.
Key Takeaways
- Leak-proof hydraulic motors stop fluid leaks, making them more reliable and safer for the environment.
- IP69K certification ensures these motors handle tough conditions, perfect for marine and rough areas.
- With better sealing technology, these motors need less care, cutting costs and boosting work efficiency.
Understanding IP69K Certification
What IP69K Certification Means
IP69K certification represents the highest level of ingress protection, ensuring that equipment is both dust-tight and resistant to high-pressure, high-temperature water jets. This rating is particularly critical for hydraulic motors used in environments where exposure to extreme conditions is unavoidable. The certification guarantees that these motors can withstand water jets with pressures ranging from 1160 to 1450 psi at a temperature of 80°C (176°F). This level of protection ensures that the motor remains operational even under the most demanding conditions, such as frequent washdowns or exposure to harsh weather.
Testing Standards for IP69K Hydraulic Motors
To achieve IP69K certification, hydraulic motors undergo rigorous testing. These tests simulate real-world conditions to ensure durability and reliability. The process involves spraying the motor with very hot water at close distances of 10-15 cm while the motor is mounted on a turntable rotating at 5 rpm. This ensures that every angle of the motor is exposed to high-pressure water jets. The table below outlines the specific parameters used during testing:
| Parameter | Specification |
|---|---|
| Close distance spray | 10-15 cm |
| Very hot water | 80°C/176°F |
| High pressure | 1160-1450 psi |
| Turntable rotation | 5 rpm |
These stringent standards ensure that hydraulic motors meet the demands of industries requiring high levels of ingress protection.
Importance of IP69K in Marine and Harsh Environments
Marine and harsh environments present unique challenges, including exposure to saltwater, extreme temperatures, and abrasive particles. IP69K-certified hydraulic motors excel in these conditions by providing unmatched protection against water, dust, and corrosion. For example, in the marine industry, these motors are essential for ships, offshore platforms, and subsea equipment, where reliability is non-negotiable. Similarly, industrial applications like mining and food processing benefit from the certification, as it ensures equipment can endure frequent high-pressure washdowns without compromising performance.
The IP69K rating also distinguishes itself from other IP ratings, such as IP68, by offering superior resistance to high-pressure water jets. This makes it indispensable for industries requiring frequent cleaning or operating in extreme environments. By choosing IP69K-certified hydraulic motors, businesses can enhance operational reliability and reduce maintenance costs.
Importance of Leak-Proof Hydraulic Motors
Challenges in Marine and Harsh Environments
Marine and harsh environments impose significant challenges on hydraulic motor performance. These conditions include exposure to salt spray, seawater, and high vibration, which can lead to corrosion, wear, and mechanical failure. Hydraulic direct drives must endure these elements while maintaining operational efficiency. Subsea equipment, for instance, often requires a projected 30-year lifespan, demanding highly reliable components and cost-effective redundant systems. Additionally, failure diagnostic features are essential to detect and address potential issues before they escalate.
To mitigate these challenges, industries implement rigorous maintenance practices. These include periodic inspections to identify early signs of damage, proper hydraulic fluid selection to prevent contamination, and regular servicing of filters and seals to reduce wear and leakage. Such measures ensure the longevity and reliability of hydraulic motors in demanding environments.
How Leak-Proof Motors Solve Environmental Issues
Leak-proof hydraulic motors play a crucial role in addressing environmental concerns. By preventing fluid leakage, these motors reduce the risk of hydraulic oil contaminating marine ecosystems. This is particularly important given the increasing regulatory focus on environmental protection. Advanced sealing technologies ensure that hydraulic motors operate efficiently without compromising the surrounding environment. Furthermore, their robust design minimizes the need for frequent repairs, reducing waste and promoting sustainable operations.
Reliability and Longevity in Extreme Conditions
Leak-proof hydraulic motors are engineered for reliability and durability under extreme conditions. Pressure testing demonstrates their ability to withstand bursts at four times their rated capacity, ensuring structural integrity. Temperature cycling tests confirm consistent performance across a wide range of temperatures, from -40°C to 200°C. Endurance testing replicates years of use in just days, with motors running under varying loads for extended periods. These rigorous assessments highlight their capability to maintain optimal performance, even in the harshest environments.
Features of IP69K-Certified Hydraulic Motors
Advanced Sealing Technologies
IP69K-certified hydraulic motors incorporate advanced sealing technologies to ensure leak-proof performance in demanding environments. These seals are designed to withstand extreme pressures and temperatures, preventing fluid leakage even under continuous operation. Materials such as fluorocarbon elastomers and polytetrafluoroethylene (PTFE) are commonly used due to their exceptional resistance to wear and chemical degradation. Multi-lip seals and labyrinth designs further enhance protection by creating multiple barriers against contaminants. These innovations not only improve operational reliability but also extend the lifespan of the motor, reducing the need for frequent maintenance.
Resistance to Water, Dust, and Corrosion
Hydraulic motors with IP69K certification offer unparalleled resistance to water, dust, and corrosion. This level of protection is critical in marine and industrial applications where exposure to harsh elements is unavoidable. The motors are constructed using corrosion-resistant materials such as stainless steel and coated alloys, which prevent rust and degradation over time. Their dust-tight design ensures that abrasive particles cannot infiltrate the internal components, preserving efficiency and performance. Additionally, the motors are rigorously tested to confirm their ability to endure high-pressure washdowns, making them ideal for industries requiring stringent hygiene standards, such as food processing.
Durability in High-Pressure and High-Temperature Settings
IP69K-certified hydraulic motors demonstrate exceptional durability under high-pressure and high-temperature conditions. Rigorous testing methods validate their performance and reliability. For instance:
| Testing Method | Description |
|---|---|
| Hydrostatic Pressure Testing | Tests pressure systems for strength and leaks by pressurizing with liquid and observing pressure loss. |
| Endurance Testing | Extends duration of pump tests to assess durability under stress. |
| High-Temperature Testing | Evaluates performance of hydraulic fluids at elevated temperatures to ensure durability. |
Unordered testing results further highlight their robustness:
- The Sundstrand piston pump operated for 450 hours, double the standard duration.
- Elevated temperature tests at 250°F confirmed consistent hydraulic fluid performance.
- The Eaton-Vickers vane pump maintained integrity after 1,000 hours of testing, staying within weight loss limits.
These results underscore the motors' ability to maintain structural integrity and operational efficiency, even in the most extreme conditions.
Applications of Hydraulic Motors in Harsh Environments
Marine Industry: Ships, Offshore Platforms, and Subsea Equipment
Hydraulic motors are indispensable in the marine industry due to their ability to perform under extreme conditions. These motors power waterjets and propellers, enabling efficient vessel movement. They regulate stabilizers and rudders, ensuring stability in rough waters. Additionally, hydraulic motors are integral to winches used for mooring, towing, anchoring, and cargo handling. Their low inertia enhances responsiveness, while their ability to provide full torque driving and braking in both directions ensures operational reliability. With mechanical efficiency reaching 97%, hydraulic motors deliver precise torque control from zero to full speed. Azimuthing propellers, powered by these motors, improve steering capabilities and reduce fuel consumption, making them a preferred choice for marine applications.
Industrial Use: Mining, Construction, and Heavy Machinery
In industrial settings, hydraulic motors excel in demanding applications such as mining, construction, and heavy machinery. Their high torque output is essential for heavy-duty tasks, while their adaptability to rugged terrains ensures consistent performance. For example, piston motors, which hold a 46.6% market share, are favored for their efficiency and torque capabilities. The table below highlights key operational statistics:
| Statistic Type | Description |
|---|---|
| High Torque Output | Essential for heavy-duty applications in mining and construction. |
| Efficiency in High-Demand | Designed for high efficiency in demanding industrial tasks. |
| Adaptability to Harsh Environments | Operates effectively in rugged terrains and extreme conditions. |
| Market Share of Piston Motors | 46.6% market share due to efficiency and high torque capabilities. |
Food Processing and Agriculture Applications
Hydraulic motors also play a vital role in food processing and agriculture. Their resistance to water, dust, and corrosion makes them ideal for environments requiring stringent hygiene standards. In food processing, these motors power conveyor belts, mixers, and other machinery subjected to frequent high-pressure washdowns. In agriculture, they drive equipment such as harvesters, irrigation systems, and soil tillers. The encapsulation of accelerometers using epoxy and fluoroelastomer enhances condition monitoring in harsh environments, ensuring the reliability of hydraulic systems. This innovation is particularly beneficial in agricultural and food processing applications, where consistent performance is critical.
Benefits of Leak-Proof Hydraulic Motors
Enhanced Operational Reliability
Leak-proof hydraulic motors ensure consistent performance by eliminating fluid leaks that can disrupt system pressure. Stable pressure levels enhance the precision and reliability of hydraulic systems, which is critical in industries like marine, mining, and food processing. Without leaks, machinery operates smoothly, reducing the risk of erratic performance. This reliability minimizes unexpected breakdowns, allowing businesses to maintain productivity and meet project deadlines. Additionally, advanced sealing technologies in these motors prevent contamination, further safeguarding operational efficiency.
Reduced Maintenance and Downtime
Hydraulic systems with leak-proof motors require less frequent maintenance, as the risk of fluid loss and component wear is significantly reduced. This translates to fewer interruptions in operations. Key benefits include:
- Reduced Pressure: Preventing leaks maintains optimal system pressure, ensuring consistent machinery performance.
- Erratic Performance Prevention: Leak-proof designs eliminate pressure fluctuations, avoiding operational inconsistencies.
- Lower Operational Costs: Minimizing leaks reduces repair expenses and downtime, improving overall productivity.
By addressing these issues, leak-proof motors extend the lifespan of hydraulic systems and reduce the need for costly repairs.
Cost-Effectiveness and Environmental Protection
Leak-proof hydraulic motors offer long-term cost savings and environmental benefits. Their energy-efficient design reduces power consumption, lowering operational costs. The table below highlights key advantages:
| Aspect | Evidence |
|---|---|
| Environmental Impact | Companies minimize the risk of long-term environmental damage caused by fluid leaks. |
| Energy Efficiency | Reduced energy usage per work cycle leads to cost savings and environmental gains. |
| Hydraulic Fluid Longevity | Longer-lasting fluids decrease waste and disposal needs. |
| Performance Characteristics | High-performing fluids extend service life, reducing environmental impact. |
These motors not only protect the environment but also align with sustainability goals, making them a cost-effective choice for industries.
IP69K-certified leak-proof hydraulic motors provide unmatched performance in marine and harsh environments. Their advanced design ensures durability, reliability, and cost-effectiveness, making them essential for industries requiring robust solutions. Businesses seeking to enhance operational efficiency and environmental sustainability should explore these hydraulic motors for their specific needs.
FAQ
What makes IP69K-certified hydraulic motors unique?
IP69K-certified motors offer superior protection against dust, water, and high-pressure cleaning, ensuring reliable performance in extreme environments like marine, mining, and food processing industries.
How do leak-proof hydraulic motors benefit the environment?
Leak-proof motors prevent hydraulic fluid leaks, reducing contamination risks. This helps protect ecosystems, particularly in marine environments, while supporting sustainability and regulatory compliance.
Are IP69K-certified motors suitable for food processing?
Yes, these motors withstand high-pressure washdowns and resist corrosion, making them ideal for maintaining hygiene standards in food processing facilities.
